PHM-1A

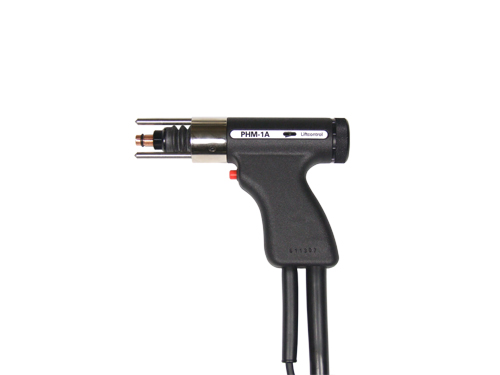

The compact stud welding gun PHM-1A is designed for capacitor discharge stud welding (gap method). It guarantees optimum welding results and repeatability and is very easy to use. The PHM-1A stands out through its robust construction and high reliability. Its ergonomic design and low weight assure tireless working.

Welding range Ø 2-10 mm
Welding material steel, stainless steel, aluminium, brass
Stud length 6-40 mm
(with accessories: any)
Welding method
(acc. to DIN EN ISO 14555)
capacitor discharge (gap method)
Welding cable 3 m, 25 mm²
Control cable plug 7-pin
Dimensions (WxHxL) 40x130x183 mm
Weight (without cable) 0,7 kg
Item number B-90-10-2211
  • especially suitable for aluminium welding
  • lift adjustable
  • indication of adjusted lift in sight window
  • highest operational repeatability, high welding quality, high reliability
  • highest stud positioning accuracy through precise slide-bearing guide of gun piston
  • simple handling
  • quick and simple retooling
  • all stud types weldable (special chuck might be required)
  • high service life through high-grade mechanical components
  • robust housing made from impact resistant, full-insulating plastics
  • 50 mm² welding cable plugs in order to prevent burnt contacts
  • precision guidance protected from welding spatters
  • ergonomic design
  • compact construction
  • low weight
  • optional: precision linear ball track of gun piston
