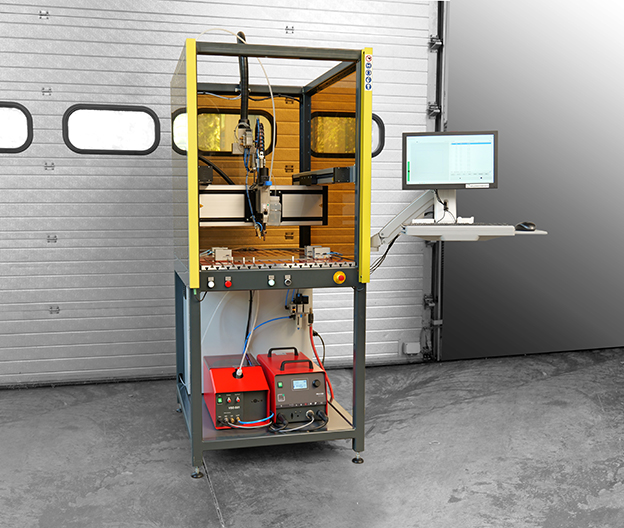

CNC stud welding machine F 4050 (working area: 400 x 500 mm) (video)

  • working area: 400 x 500 mm
  • welded steel machine frame
  • ceramic stop pins on the X- and Y-zero line
  • operating software PRO-STUD (incl. DXF data converter)
  • operation of the software via monitor with keyboard and mouse (control PC with Windows 10)
  • one automatic stud welding head KHA-200F with integrated travel measuring system
  • fluid spraying device on welding head
  • one stud welding unit PRO-C 1500
  • one automatic stud feeder VBZ
  • two pneumatic ground clamps, aperture angle 90°
  • housing with light curtain for safeguarding the working area
