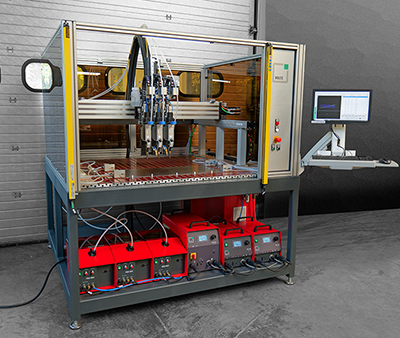

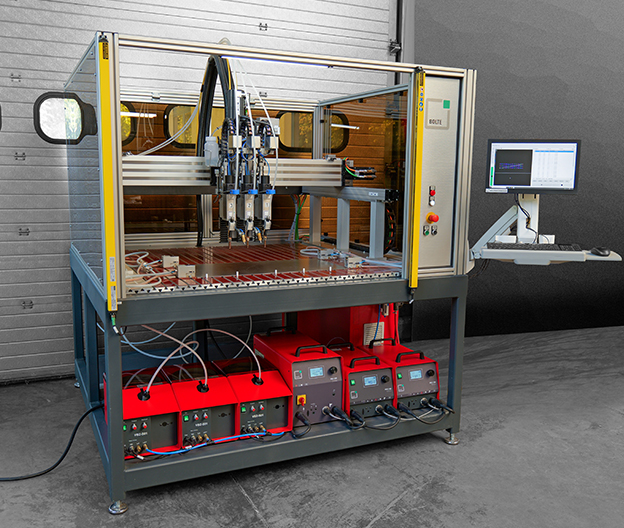

CNC stud welding machine T 808025 (working area: 800 x 800 x 250 mm) (video)

  • working area: 800 x 800 x 250 mm
  • welded steel machine frame
  • ceramic stop pins on the X- and Y-zero line
  • operating software PRO-STUD (incl. DXF data converter)
  • operation of the software via monitor with keyboard and mouse (control PC with Windows 10)
  • three automatic stud welding heads KHA-200F with integrated travel measuring system
  • fluid spraying device on each welding head
  • two stud welding units PRO-C 1500 for capacitor discharge stud welding
  • one stud welding unit PRO-I 1300 for drawn arc stud welding
  • optional: milling unit with exhaust device
  • three automatic stud feeders VBZ
  • four pneumatic ground clamps, aperture angle 90°
  • housing with light curtain for safeguarding the working area
