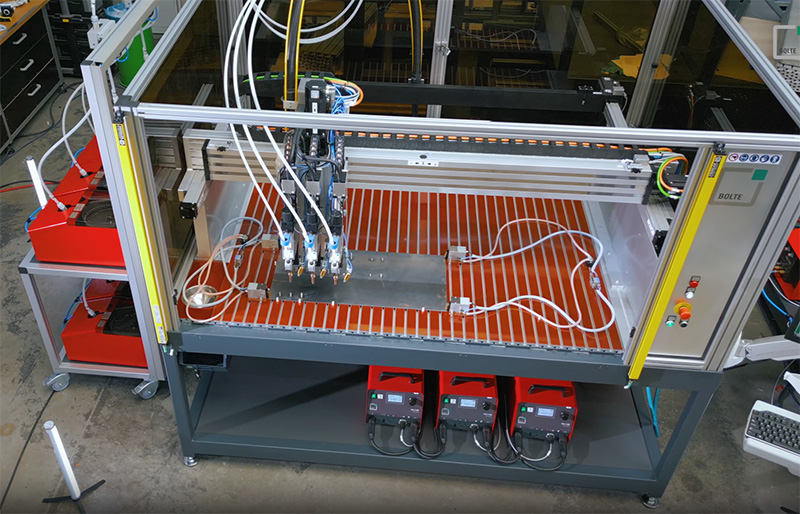

• working area: 1300 x 800 x 250 mm
• welded steel machine frame
• eight ceramic stop pins on the X and Y zero line
• operating software PRO-STUD (incl. DXF data converter)
• operation of the software via monitor with keyboard and mouse (control PC with Windows 10)
• three automatic stud welding heads KHA-200F with integrated travel measuring system
• fluid spraying device on each welding head
• three stud welding units PRO-C 1500
• eight automatic stud feeders VBZ with five stud switches
• three stud feeders VBZ with two stud switches for welding head 1
• three stud feeders VBZ with two stud switches for welding head 2
• two stud feeders VBZ with one stud switch for welding head 3
• twelve pneumatic ground clamps, aperture angle 90°
• light curtain for safeguarding the working area

The first and second welding head are each equipped with three automatic stud feeders VBZ and two stud switches, the third welding head is equipped with two automatic stud feeders VBZ and one stud switch. The VBZ feeders are loaded with studs of the same diameter but different lengths. The servo-motorized Z-axis (250 mm) automatically compensates for the stud length differences, allowing a single welding head to process studs of varying lengths without requiring any prior retooling.
